| Welding Process: | Submerged Arc Welding (SAW) |
| Recommended Miller Power Supplies: | SubArc DC 650/800 Digital SubArc DC 1000/1250 Digital SubArc AC/DC Digital |
| Input Power: | 24 V (AC) – 1 Phase 50/60 HZ / 25 amps |
| Wire Feed Speed: | . |
| Wire Size Range: | 1/16–5/32 in. (1.6– 4.0 mm) |
| Travel Speed: | 5–70 ipm (0.13–1.75 m/min.) |
| Rated output: | Max diameter 4.0 mm SAW wire |
| Weight: | 120 lb. (54.4 kg) without flux and wire |

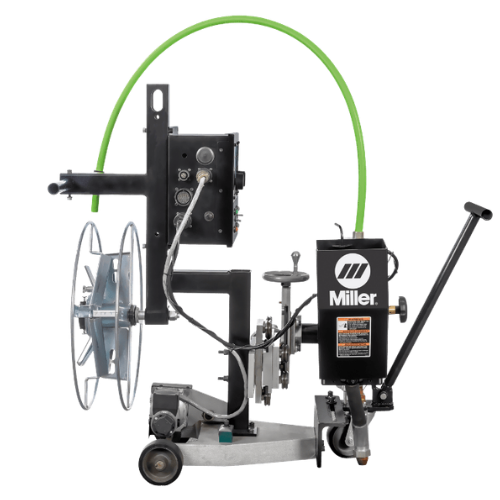

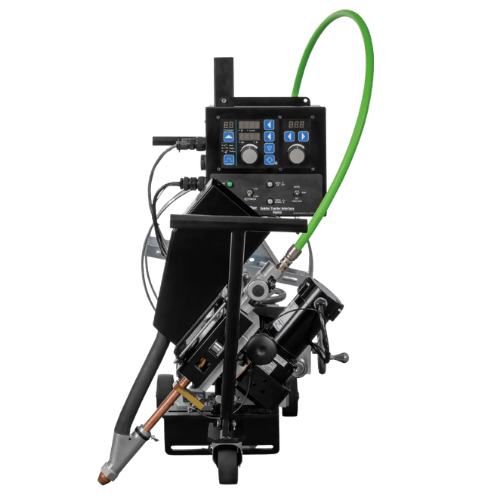

Submerged Arc Welding (SAW) introduces the 3-Wheel Sub Arc tractor, now equipped with a function interface that makes it easier for the operator to control the weld from a single panel. It is a compact package with a lot of flexibility that can be configured for any application in Heavy welding applications.
