Experience reliable and precise arc performance paired with a user-friendly interface that puts advanced capabilities at your fingertips.

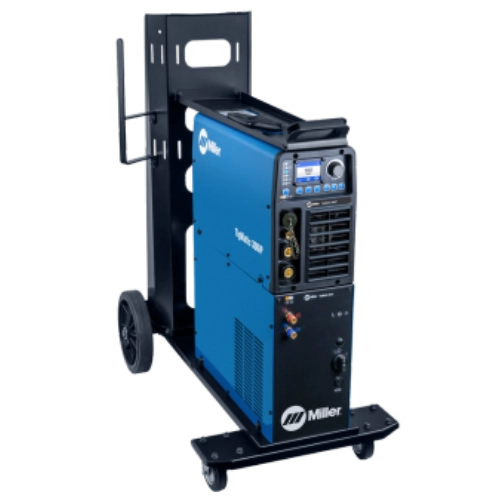

With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds.
The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.
| Welding Process: | DC TIG (GTAW), DC TIG pulsed (GTAW-P), MMA/Stick (SMAW) |
| Welding Output: | 300A, 32V by 35% duty cycle |
| Output Range: | 5-300A |
| Maximum Output Amperage: | 300 A |
| Input Power: | 400 V, 3 phases (50/60 Hz) |
| Rated Output: | 300A @ 35% Duty Cycle |
| Net Weight: | Power source- 24 kg |
Experience reliable and precise arc performance paired with a user-friendly interface that puts advanced capabilities at your fingertips.
With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds.
The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.
Food and Beverage, Petro chemical, Pipe spool fabrication, Ship building, General fabrication
| Welding Process: | DC TIG (GTAW), DC TIG pulsed (GTAW-P), MMA/Stick (SMAW) |
| Welding Output: | 300A, 32V by 35% duty cycle |
| Output Range: | 5-300A |
| Maximum Output Amperage: | 300 A |
| Input Power: | 400 V, 3 phases (50/60 Hz) |
| Rated Output: | 300A @ 35% Duty Cycle |
| Net Weight: | Power source- 24 kg |
Experience reliable and precise arc performance paired with a user-friendly interface that puts advanced capabilities at your fingertips.
With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds.
The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.
